Author: Quentin Delorme, March, 2025
1 Description and History
1.1 Solar Heating Applications
Solar heating has long been regarded as one of the most effective and environmentally friendly ways to harness solar energy. It is primarily utilized for heating water and indoor spaces in residential, commercial, and industrial settings. Over time, solar heating systems have evolved, adapting to meet diverse needs ranging from domestic hot water supply to large-scale district heating networks. As an integral part of the renewable energy sector, solar heating technologies harness the power of solar radiation to generate thermal energy, which can be stored and used as needed. Solar heating systems are categorized into two main types: passive and active, with each type serving a different role in maximizing solar energy use.
1.2 Solar Resource
The success of solar heating systems depends largely on geographical location and climate conditions. Solar radiation is most abundant near the equator, but technological advancements have made solar heating viable even in cooler and less sunny regions. Improved collector designs and thermal storage solutions have increased the efficiency of solar heating, making it an option for a broader range of climates. Solar heating systems can be designed to meet the heating needs of various applications, including domestic water heating, space heating, and industrial processes.
1.3 Main and Current Technologies
Two primary types of solar heating systems dominate the market: passive and active.
- Passive Solar Heating involves leveraging the design of buildings to capture and store solar energy. Building features such as south-facing windows and thermal mass materials are used to absorb and distribute solar energy. These systems are simple, cost-effective, and require minimal maintenance, making them an ideal solution for new construction projects.
- Active Solar Heating relies on mechanical systems, such as pumps, solar collectors, and heat exchangers, to capture and transfer heat. This technology is more complex than passive systems but offers higher levels of control and efficiency. Active systems are particularly useful in retrofitting existing buildings and can be combined with other heating distribution systems.

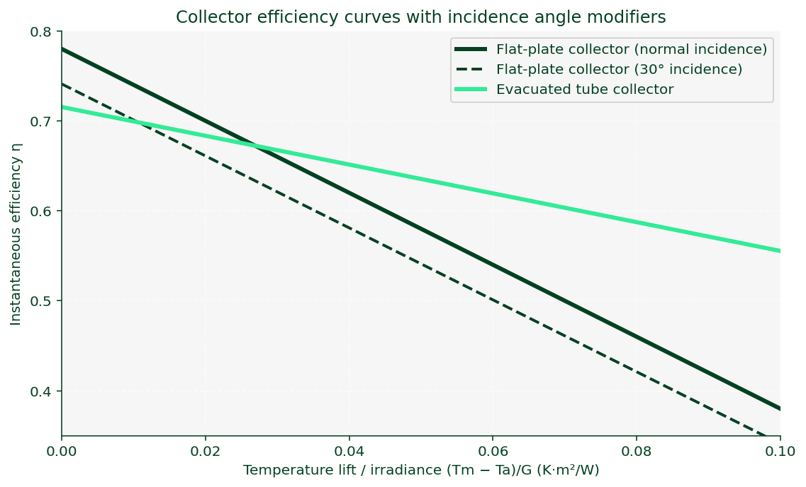

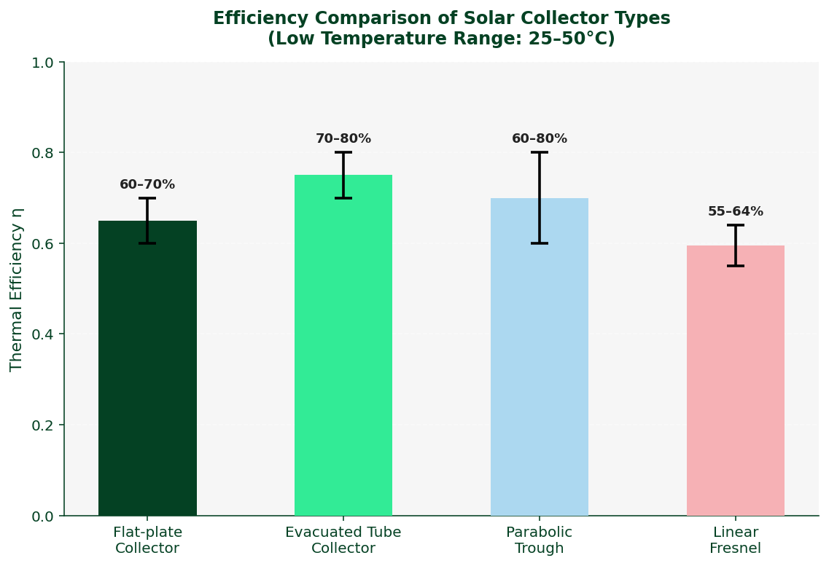

Common types of solar collectors include:
- Flat-Plate Collectors: Simple, reliable, and cost-effective, these collectors are widely used for residential applications, such as domestic hot water systems.
- Evacuated Tube Collectors: More efficient in colder climates, these collectors are ideal for applications requiring higher temperatures, such as commercial or industrial heating.
- Concentrated Solar Thermal Systems: These systems use mirrors or lenses to focus sunlight onto a small area, creating high temperatures suitable for large-scale industrial processes.
1.4 Thermal Storage
Thermal storage plays a vital role in balancing the intermittent nature of solar energy. Waterbased storage tanks are the most common method for storing heat, although more advanced solutions such as phase change materials (PCMs) and thermochemical storage systems are gaining attention. These advanced systems offer greater energy density and better long-term storage capabilities.
2 Economic Performance

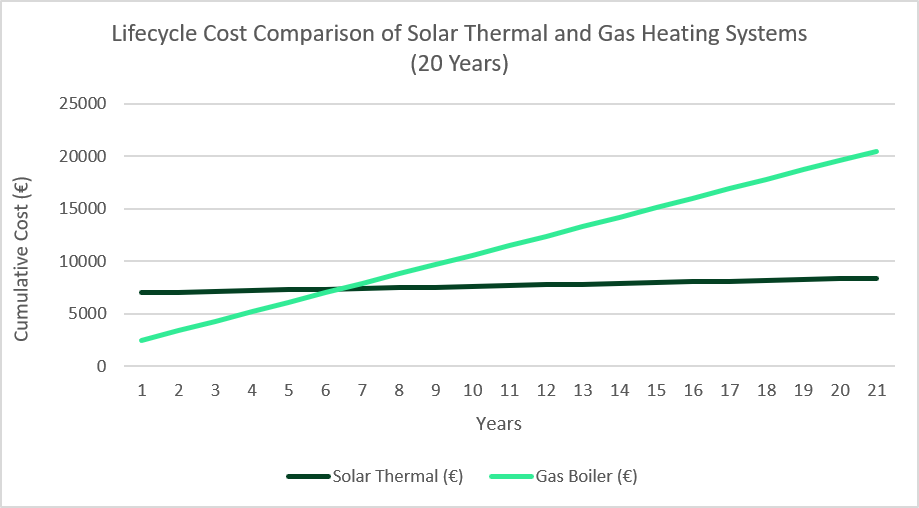

2.1 Investment and Installation Costs
The initial cost of installing a solar heating system can be significant, particularly for largescale applications. The cost varies depending on system size, technology, and regional market conditions. Domestic solar heating systems typically cost between €210/kWth and €1,980/kWth, while large-scale systems benefit from economies of scale, with prices as low as €290/kWth in competitive markets like Denmark.
Factors influencing installation costs include system complexity, required modifications to existing structures, and the availability of skilled labor.
2.2 Operation and Maintenance Costs
One of the major advantages of solar heating systems is their low operational and maintenance (O&M) costs. Solar heating systems do not require fuel, and the main costs involve periodic servicing of components such as pumps and heat exchangers. While passive systems have minimal O&M requirements, active systems may require more attention, particularly for auxiliary equipment.
2.3 Economic Incentives
Government policies and incentives play a significant role in the financial viability of solar heating systems. Subsidies, tax credits, and feed-in tariffs can help reduce the initial investment cost, making solar heating more accessible to consumers and businesses. These financial mechanisms help stimulate the adoption of renewable energy technologies, thus supporting the transition to a sustainable energy future.
3 Ecological Performance
3.1 Reduction in Greenhouse Gas Emissions
One of the key ecological benefits of solar heating is its ability to significantly reduce greenhouse gas emissions, particularly carbon dioxide (CO2). By replacing fossil fuel-based heating systems, solar heating contributes to mitigating climate change and improving air quality. The lifecycle emissions of a solar heating system are far lower than those of traditional heating sources, such as gas or coal boilers. For instance, a test solar hot water (SHW) system in Italy was calculated to produce about 700 kg of CO2, which is recovered within approximately two years of use. Similarly, in Australia, the life-cycle emissions of a SHW system were found to be recovered rapidly, with the system having about 20% of the impact of an electrical water heater and half the emissions impact of a gas water heater.
3.2 Energy Efficiency and Resource Conservation
Solar heating systems are highly efficient, achieving energy conversion rates of 50-70%. This high efficiency means that solar heating systems help conserve natural resources and reduce the environmental impact of energy production. Furthermore, solar heating systems rely on an abundant and renewable resource, the sun, thereby decreasing dependence on non-renewable fuels.
3.3 Lifecycle Environmental Impact
While the manufacturing of solar heating systems involves the use of raw materials, such as metals and glass, the long-term environmental benefits far outweigh these initial impacts. Advances in recycling and sustainable manufacturing practices continue to improve the ecological footprint of solar heating systems.
4 Social Impact
4.1 Energy Access and Affordability
Solar heating systems have the potential to improve energy access in remote and underserved regions, particularly in developing countries. In these areas, solar heating provides an affordable and sustainable alternative to traditional electricity-based heating methods. By reducing household energy costs, solar heating can improve living standards and increase energy security.

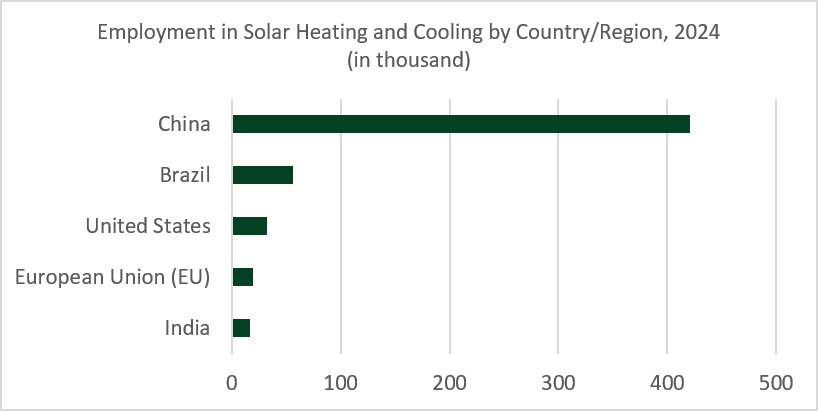

4.2 Job Creation
The growth of the solar heating industry has contributed to job creation across multiple sectors. These include manufacturing, installation, maintenance, and research and development. Job creation in the renewable energy sector can stimulate local economies and create long-term employment opportunities, particularly in regions with high solar potential.
4.3 Health and Well-being
Solar heating systems reduce the reliance on biomass and fossil fuels, which are major sources of indoor air pollution. This reduction in pollution has a direct impact on public health by improving respiratory conditions and reducing the incidence of illnesses related to poor air quality. Furthermore, solar heating helps improve energy security by decreasing dependence on volatile fossil fuel markets.
5 Political and Legal Aspects
5.1 Regulatory Framework
Governments play a crucial role in promoting solar heating through regulations and policies. For example, building codes in some countries require new constructions to integrate renewable energy systems, including solar heating. These regulations help ensure that buildings are energy-efficient and contribute to reducing overall energy consumption.
5.2 Financial Incentives
Financial incentives, such as tax credits, rebates, and low-interest loans, also make solar heating more financially viable. These measures encourage consumers to invest in renewable energy solutions and reduce the economic gap between solar heating and conventional heating technologies.
5.3 Carbon Pricing Mechanisms
Carbon pricing policies, such as carbon taxes and emissions trading schemes, indirectly support the adoption of solar heating by making fossil fuel-based heating systems more expensive. These market-based mechanisms create a more favorable economic environment for renewable energy technologies, including solar heating.
5.4 International Collaboration
Organizations like the International Energy Agency (IEA) and the International Solar Energy Society (ISES) promote global collaboration in solar heating research, policy development, and technology transfer. By sharing knowledge and expertise across borders, these organizations help accelerate the development and deployment of solar heating technologies.
5.5 Challenges and Future Outlook
Despite its numerous advantages, solar heating faces several challenges, including high initial investment costs, limited public awareness, and competition from other renewable energy technologies. To overcome these challenges, governments must implement stable, long-term policies and continue investing in research to enhance the efficiency and affordability of solar heating systems. International collaboration and market competition will further drive innovation in the sector, facilitating cost reductions and improved system performance.
6 Conclusion
Solar heating technologies offer numerous economic, ecological, social, and political benefits. Although the initial costs remain a barrier, the long-term savings, environmental benefits, and improved energy security make solar heating a compelling option for sustainable heating. With ongoing technological advancements and continued policy support, solar heating can play a key role in the transition to a clean, renewable energy future. By addressing current challenges and fostering innovation, solar heating has the potential to revolutionize the way we heat our homes and industries, contributing significantly to global efforts to combat climate change.
References
European Commission. (2023). EU Solar Thermal Regulations and Directives. Retrieved from https://energy.ec.europa.eu
European Solar Thermal Industry Federation (ESTIF). (2024). Environmental benefits of solar thermal systems. Retrieved from https://solarheateurope.eu
Fraunhofer Institute for Solar Energy Systems (ISE). (n.d.). Solar thermal energy research.
Retrieved from https://www.ise.fraunhofer.de
International Energy Agency (IEA) Solar Heating & Cooling Programme. (n.d.). Solar thermal energy reports and research. Retrieved from https://www.iea–shc.org
International Renewable Energy Agency (IRENA). (2024). Solar heating and cooling report. Retrieved from https://www.irena.org
Intergovernmental Panel on Climate Change (IPCC). (2022). Special report on renewable energy: Solar thermal chapter. Retrieved from https://www.ipcc.ch
Jäger, K., et al. (Eds.). (2020r). Solar energy: The physics and engineering of solar energy conversion technologies. Publisher.
Life Cycle Analysis of Solar Thermal Systems. (2021). ResearchGate. Retrieved from https://www.researchgate.net
PV Tech Reports. (2022). Global solar energy policy handbook. Retrieved from https://www.pv–tech.org
REN21. (2021). Global status report on solar thermal energy. Retrieved from https://www.ren21.net
U.S. Department of Energy. (2022). Solar thermal policy reports. Retrieved from https://www.energy.gov
United Nations Environment Programme (UNEP). (2023). Solar energy for developing countries. Retrieved from https://www.unep.org
(2024). Solar thermal for industrial and residential heating: Case studies. Springer. Retrieved from https://link.springer.com
(2024). The economics of solar thermal energy. ScienceDirect. Retrieved from https://www.sciencedirect.com
